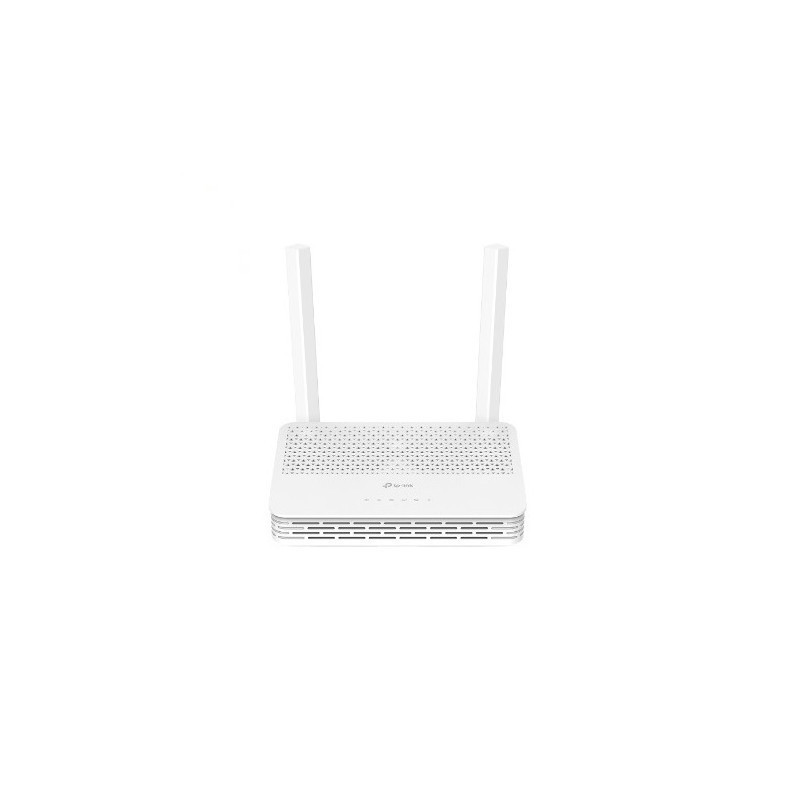

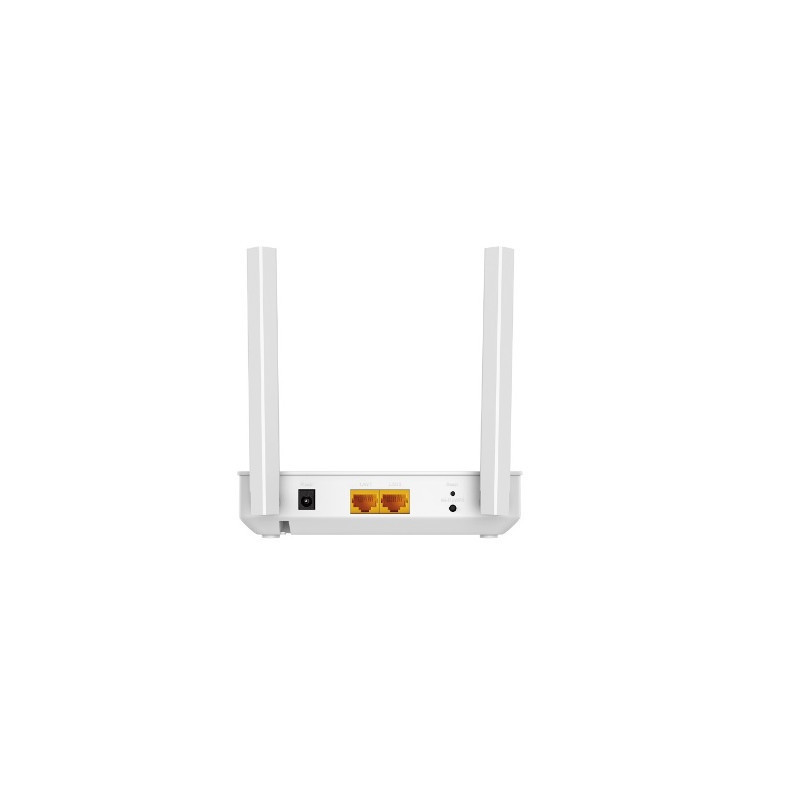

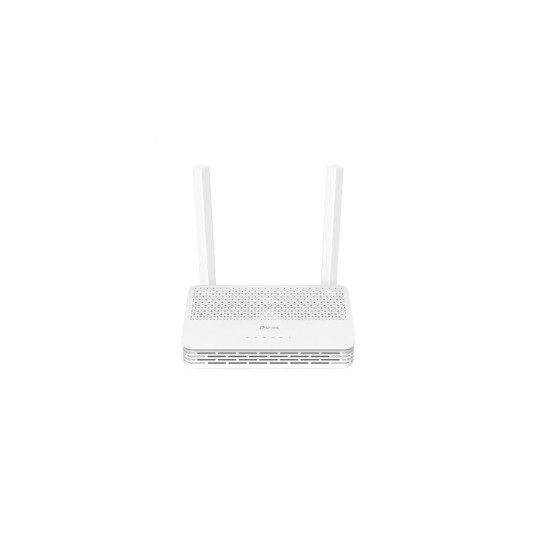

Modem Router XC220-G3 XPON Gigabit Dual Band AC1200 TP-LINK

HARDWARE FEATURES

External Power Supply 12V/1.0A

Interface 2 10/100/1000 Mbps RJ45 LAN Ports

  1 PON Port

Button WPS/Wi-Fi Button, RESET Button

Antenna 2 External Dual Band Antennas

Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)

  Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)§

WIRELESS FEATURES

Frequency 2.4 GHz and 5 GHz

Signal Rate 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Transmit Power 2.4 GHz: 26 dBm(EIRP), 5GHz: 28dBm (EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security WPA/WPA2/WPA3 encryptions

Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule

Mesh Technology EasyMesh Compatible, and support 802.11k/v/r

SOFTWARE FEATURES

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP

Quality of Service Hardware QoS

Dynamic DNS DynDns, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec Pass-through

Management Local management: WebGUI management, Aginet app management

  Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143

  Cloud management: TP-Link Aginet Unified Cloud (TAUC)

Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense Denial of Service (DoS), SYNFlooding, Ping of Death

Advanced Functions Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3

Protocols IPv4, IPv6

OTHERS

Package Contents AC1200 Wireless XPON Router XC220-G3

  RJ45 Ethernet Cable

  Power Adapter

  Quick Installation Guide

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

  Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

  Subscription with an internet service provider (for internet access)

Environment Operating Temperature: 0?40? (32?104?)

  Storage Temperature: -40?60? (-40?140?)

  Operating Humidity: 10%90% non-condensing

  Storage Humidity: 5%90% non-condensing
