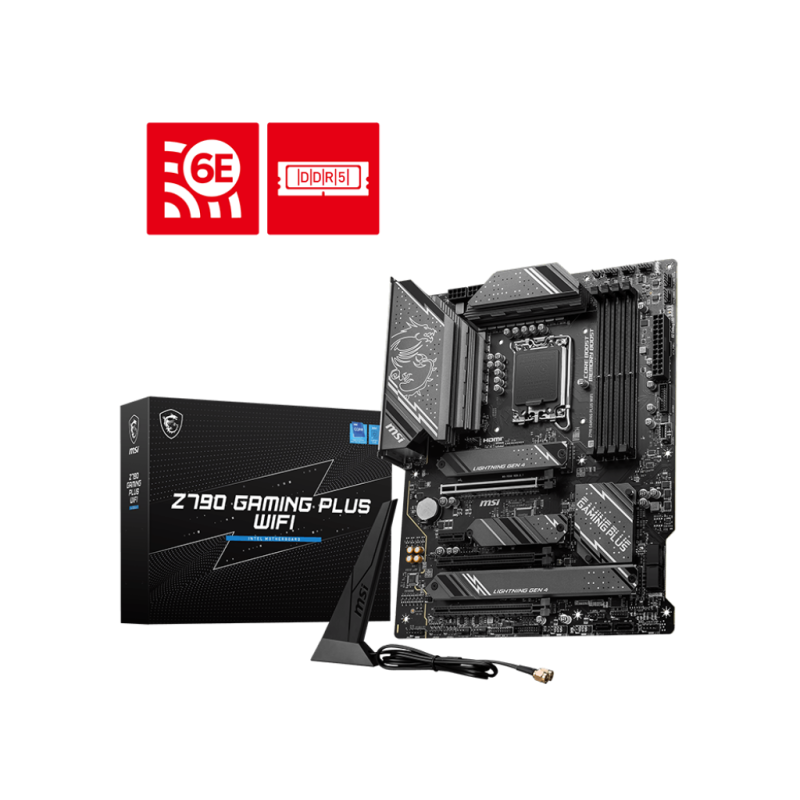

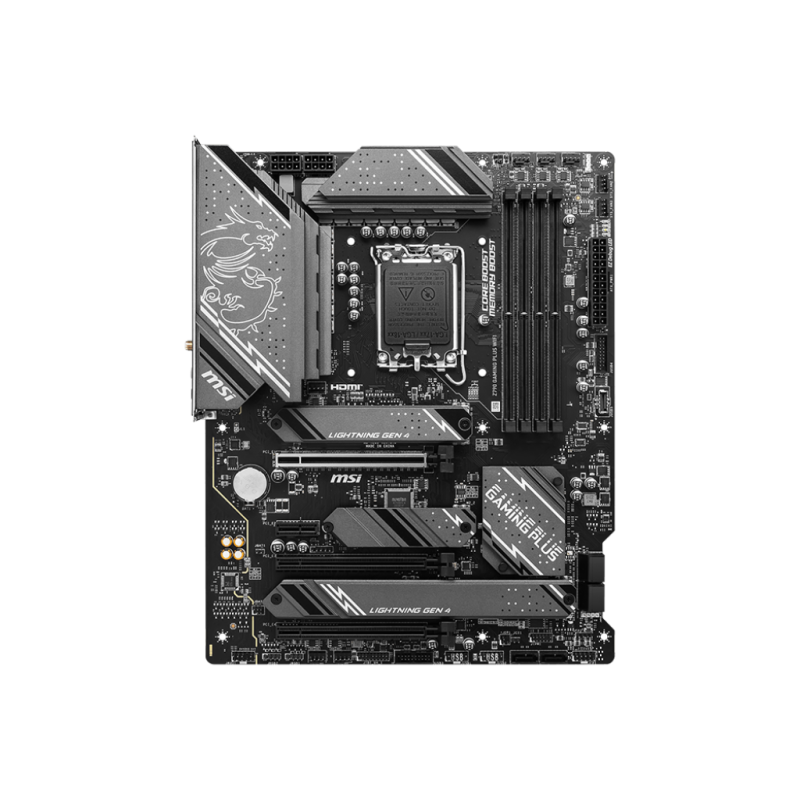

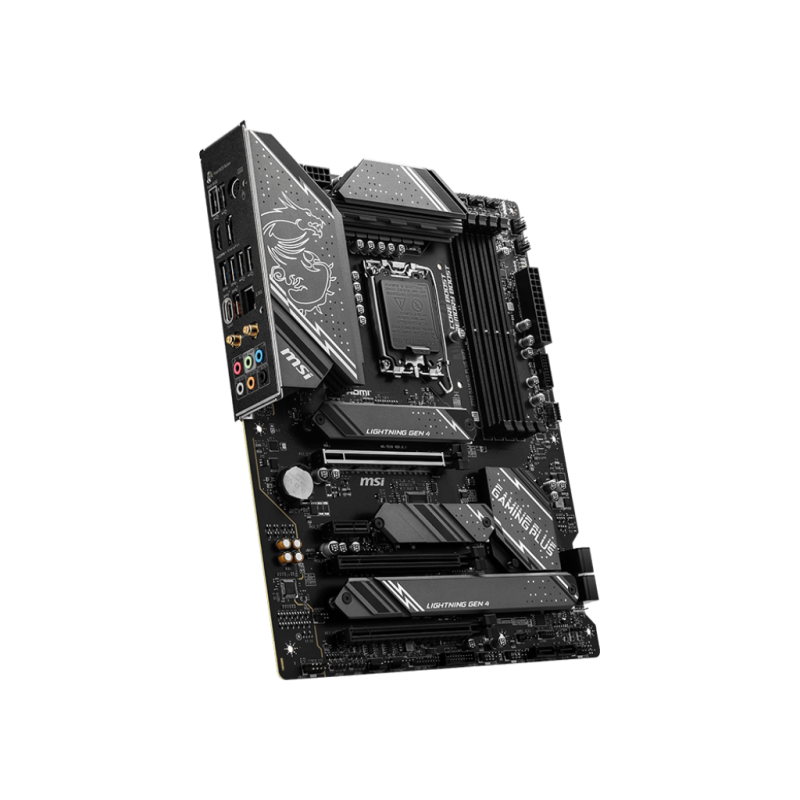

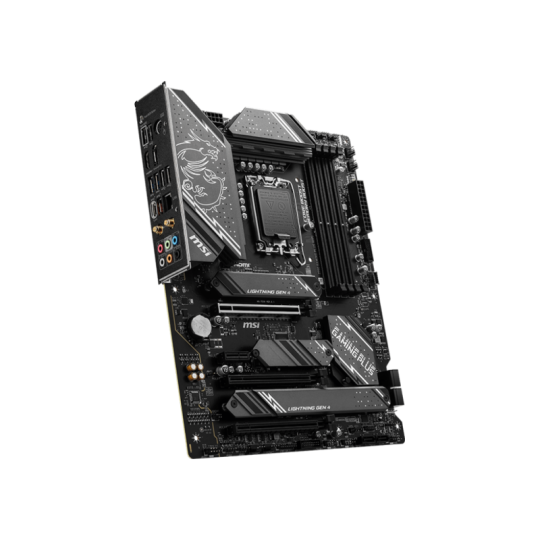

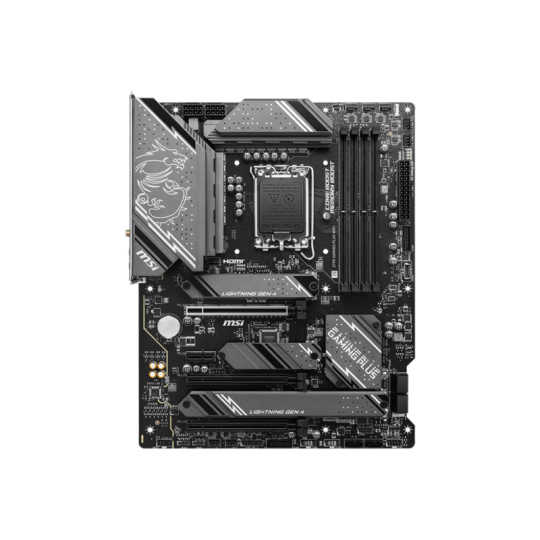

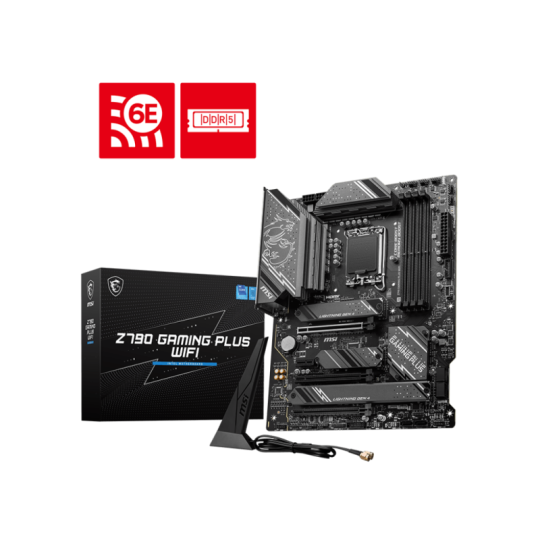

Motherboard MSI Z790 GAMING PLUS WIFI DDR5 1700 (12va/13va/14va Gen)

Chipset INTEL Z790

CPU Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

  LGA 1700

Memory 4x DDR5, Maximum Memory Capacity 256GB

  Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

  Max. overclocking frequency:

  1DPC 1R Max speed up to 7200+ MHz

  1DPC 2R Max speed up to 6600+ MHz

  2DPC 1R Max speed up to 6400+ MHz

  2DPC 2R Max speed up to 5600+ MHz

  Supports Intel® XMP3.0 OC

  Supports Dual-Controller Dual-Channel mode

  Supports non-ECC, un-buffered memory

Onboard Graphics 1x HDMI

  Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz*

  1x DisplayPort

  Support DP 1.4, maximum resolution of 4K 60Hz*

  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot 3x PCI-E x16 slot

  1x PCI-E x1 slot

  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio Realtek® ALC897 Codec

  7.1-Channel High Definition Audio

Storage 4x M.2

  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

  6x SATA 6G

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

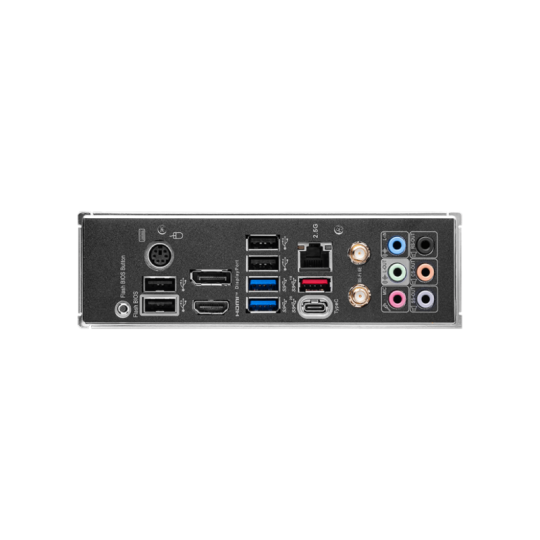

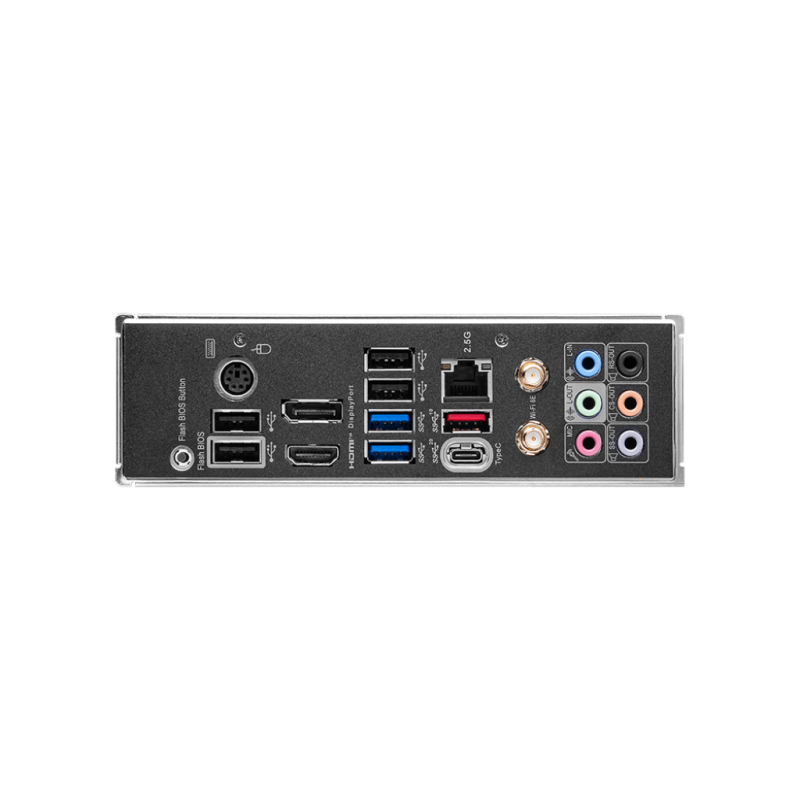

USB 4x USB 2.0 (Rear)

  4x USB 2.0 (Front)

  2x USB 5Gbps Type A (Rear)

  4x USB 5Gbps Type A (Front)

  1x USB 10Gbps Type A (Rear)

  1x USB 10Gbps Type C (Front)

  1x USB 20Gbps Type C (Rear)

LAN Intel® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E

  The Wireless module is pre-installed in the M.2 (Key-E) slot

  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

  Supports 802.11 a/ b/ g/ n/ ac/ ax

  Supports Bluetooth® 5.3, FIPS, FISMA

  * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.

  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO 1x Power Connector(ATX_PWR)

  2x Power Connector(CPU_PWR)

  1x CPU Fan

  1x Pump Fan

  6x System Fan

  2x Front Panel (JFP)

  1x Chassis Intrusion (JCI)

  1x Front Audio (JAUD)

  1x Tuning Controller connector(JDASH)

  2x Addressable V2 RGB LED connector (JARGB_V2)

  2x RGB LED connector(JRGB)

  1x TPM pin header(Support TPM 2.0)

  1x USB4 card connector (JTBT_U4_1, supports RTD3)

  4x USB 2.0 ports

  4x USB 5Gbps Type A ports

  1x USB 10Gbps Type C ports

LED FEATURE 4x EZ Debug LED

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info ATX

  243.84mmx304.8mm
