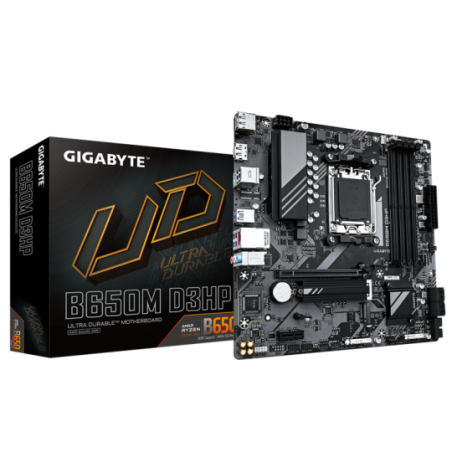

Motherboard Gigabyte B650M D3HP DDR5 AM5 (Serie 7000/8000)

Procesador

AMD Socket AM5, support for:

  AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Chipset

AMD B650

Memoria

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Gráfica Integrada

Integrated Graphics Processor with AMD Radeon Graphics support

  - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS

1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Otras Características

Support for GIGABYTE Control Center (GCC)

  Support for Q-Flash

  Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)

  LAN bandwidth management software

Sistema Operativo

Support for Windows 11 64-bit

  Support for Windows 10 64-bit

Formato

Micro ATX Form Factor; 24.4cm x 24.4cm
