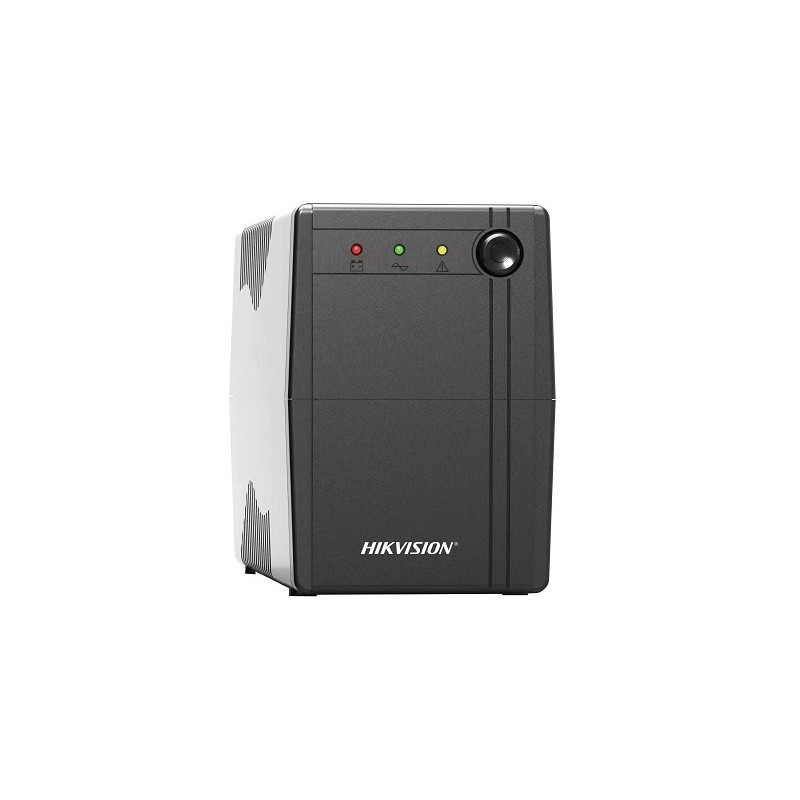

UPS 600VA/360W,220V Backup DS-UPS600 hikvision

Alimentación UPS Capacity600 VA / 360 W

Entrada Input Voltage Range85 VAC to 150 VAC

  Input Frequency50/60 Hz self-adaptive

  Plug TypeType B (NEMA 5-15)

Salida Rango de voltaje de salida110 VAC to 125 VAC

  Output Frequency50/60 Hz ± 0.5 Hz self-adaptive

  Transfer Time<= 10 ms

  WaveformPWM

  Outlet TypeType B (NEMA 5-15)

  Outlet NumberBattery outlet*4 & Bypass*2

Batería Tipo de batería12 V/7 Ah, lead-acid battery

  Recharge Time4-6 hours recover to 90% capacity

  Typical Backup Time

  Run time at 60w: 35 min

  Run time at 100w: 20 min

  Run time at 200w: 3 min

Interfaz Communicate PortsNo

Protección Full ProtectionSurge protection,Overload protection,Discharge protection,Overcharge protection

Indicador pantalla

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

Alarma Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

General Temperatura de funcionamiento0 °C to 40 °C (32 °F to 104 °F)

  Condiciones de humedad30% to 90% (non-condensing)

  Dimensión274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")

  Approx. 4.2 kg (9.26 lb)
