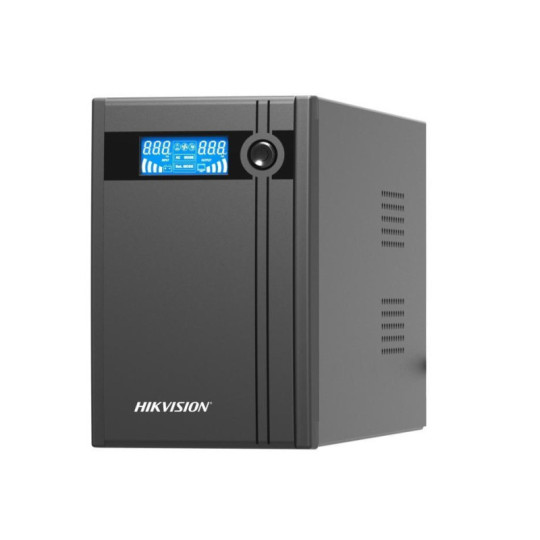

UPS hikvision DS-UPS2000-x 2000VA/1200W,220V Backup

Alimentación UPS Capacity2000 VA / 1200 W

  Entrada

Entrada Input Voltage Range85 VAC to 150 VAC

  Input Frequency50/60 Hz self-adaptive

  Plug TypeType B (NEMA 5-15)

  Salida

Salida Rango de voltaje de salida110 VAC to 125 VAC

  Output Frequency60 Hz ± 0.5 Hz

  Transfer Time<= 10 ms

  WaveformPWM

  Outlet TypeType B (NEMA 5-15)

  Outlet Number6

  batería

Batería Tipo de batería12 V/9 Ah *2 pcs, lead-acid battery

  Recharge Time6-8 hours recover to 90% capacity

  Typical Backup Time

  Run time at 100w: 70 min

  Run time at 300w: 17 min

  Run time at 600w: 5 min

  Interfaz

Interfaz Communicate PortsUSB

  Protección

Protección Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

  indicador

Indicador pantalla

  LCD Screen

  Input Voltage, Output Voltage, Battery capacity, load level

  Alarma

Alarma Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

  General

General Temperatura de funcionamiento0 °C to 40 °C (32 °F to 104 °F)

  Condiciones de humedad30% to 90% (non-condensing)

  Dimensión345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")

  Approx. 11 kg (24.3 lb)
